AWWA Gate Valves, Check Valves & Fire Hydrants

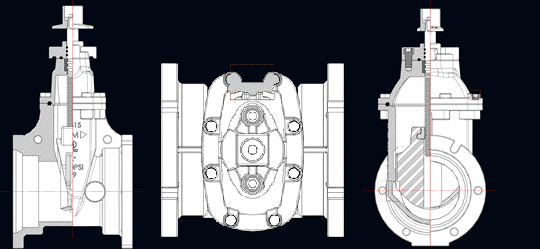

Model 2010 AWWA Resilient Seated Gate Valve

awwa gate valvesThe United Model 2010 AWWA Resilient Seated Gate Valve offers State of the Art design and construction. Manufactured to exceed the requirements of AWWA C515 Standard, the body, bonnet, and wedge are of high strength ductile-iron. The wedge is totally encapsulated with EPDM rubber to provide a leak proof seal every time. The stem and specially designed bonnet studs are of Stainless Steel; there are no exposed nuts or fasteners. The Model 2010 is Fusion Bonded Epoxy Coated to AWWA C550 Standard, offering the ultimate in corrosion protection.

The United Model 2010 is UL Listed at 300 psi, the highest rated pressure in the industry (2.5”-12” Sizes) and is FM Approved at 250 psi (4”-12” Sizes). It is NSF-61 Certified for use in Drinking Water Systems.

The United Model 2010 is available in Mechanical Joint, Flanged, Mechanical Joint x Flanged, Push-On, and Tapping Valve end configurations.


The United Model 2010 is available in Mechanical Joint, Flanged, Mechanical Joint x Flanged, and Tapping Valve configurations. 14” through 24” Sizes are UL Listed and are available with Spur or Bevel Gear Operators.


resilient seated valve

ul listed gate valve

NSF Certified resilietn gate valves

FM Approved gate valve


Download Brochure

Download Submittal

Download Specs - with Bevel Gear Operator

Download Specs - with Spur Gear Operator

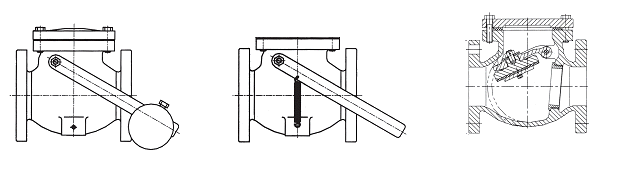

Model 7700 AWWA Swing Check Valve

awwa swing check valveThe United Model 7700 Swing Check Valve is manufactured in strict accordance with AWWA C508 Standard. The heavy duty body is of ASTM A126, Class B cast iron, Fusion Bonded Epoxy Coated with DuPont Napgard® powder, Certified to NSF-61. Bonnet bolts are of Type 304 Stainless Steel (standard), offering the ultimate in corrosion protection. Internal gaskets and seat rings are of NBR Rubber. The Clevis Pins and Hanger Shafts are of Type 304 Stainless Steel to provide long lasting service for water, sewer, or wastewater applications.

awwa check valve


United Model 7700 Swing Check Valves are available with flanged ends, in standard configuration. Also available with Lever & Weight or Lever & Spring.


Download Specs



Model 8700 AWWA C508 Swing Check Valve

The United Model 8700, AWWA C508 swing check valve is manufactured of ductile iron, it is UL listed and FM approved to 300psi with a clear waterway. Fusion bonded epoxy coating is inside and out to AWWA C550. The United Model 8700 is available with flange and groove end configurations.


awwa swing check valve 8700

United 8700 Check Vavle

United 8700GG Check Valve


Download Specs - 8700

Download Specs - 8700GG

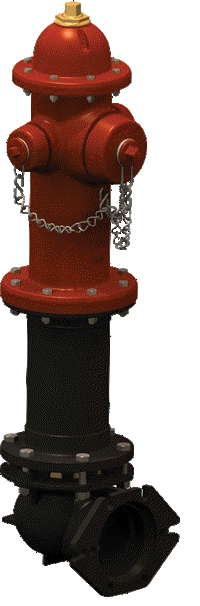

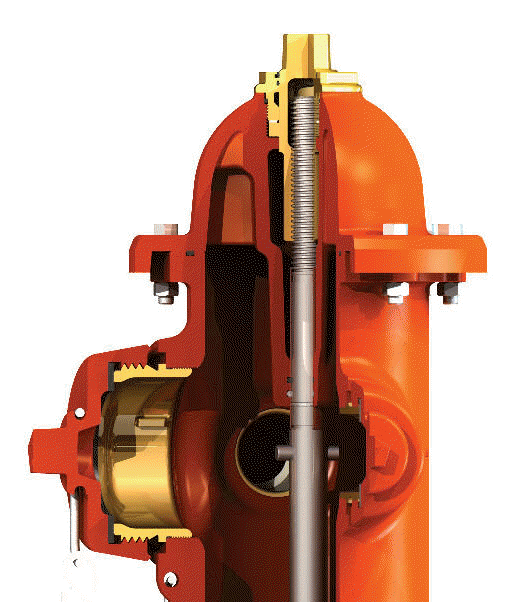

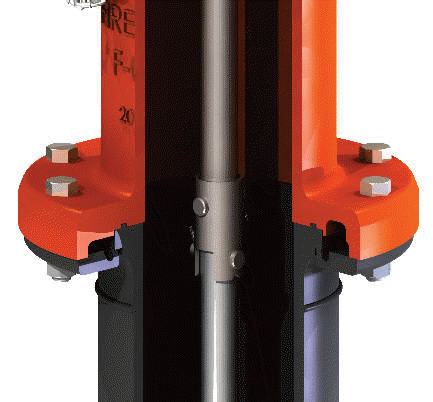

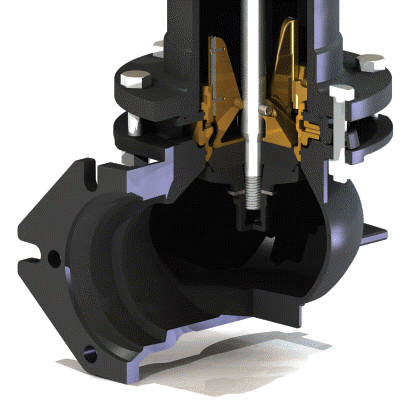

F-06 "Fire-Flo" C502, UL, FM Approved Hydrant

Manufactured in strict accordance with AWWA C502 Standard, the United Model F-06 “Fire-Flo” Hydrant is fully compatible with the industry leading fire hydrant; all parts, kits, and tools are interchangeable, allowing the end user to standardize on inventories and operator training. The F-06 has many years of field proven service.


ul listed gate valve FM Approved gate valve

awwa hydrants


The F-06 is UL Listed / FM Approved and is rated at 250 psi water working pressure. All bury depths are in stock for immediate shipment, in either open left or open right configuration. Tools, kits, and parts are also shipped from stock.


Download Brochure

Download Submittal

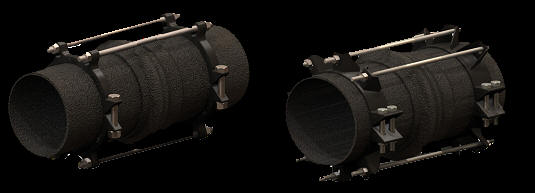

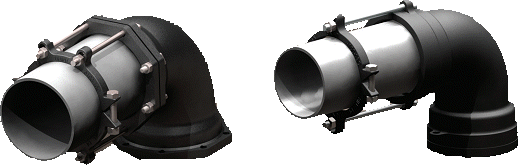

United also manufactures uni-fit joint restraints and uni-fit couplings / flanged coupling adapters.


  mechanical joint restraint   coupling restraint


   awwa pipe bell restraint




Download Specs - Uni-Fit Joint Restraints

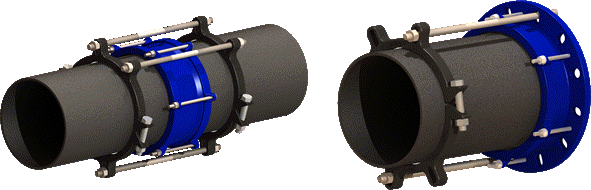

flanged pipe adapter  unifit flanged coupling adapter


Download Specs - Uni-Fit Couplings



Requests For Quotes


RFQs may be faxed to 936-448-4699.


Quotes will be responded to within 24 hours.


If you have an emergency RFQ, please phone 936-582-4616.
